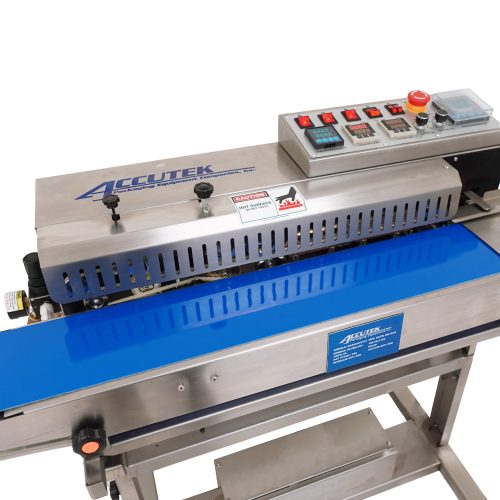

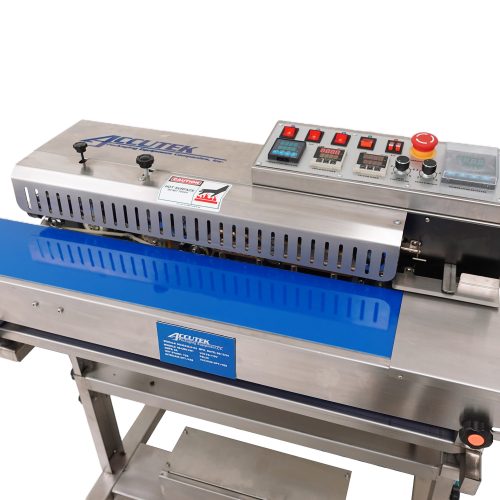

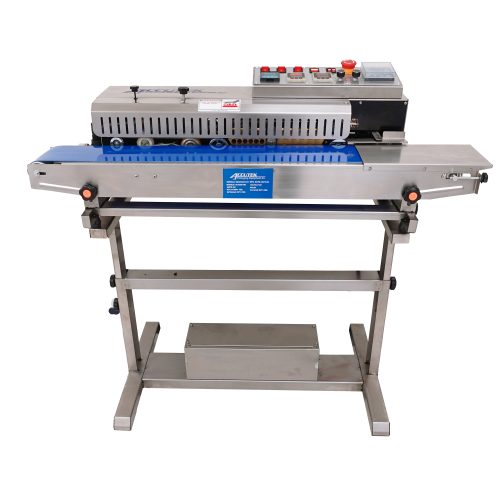

Horizontal Band Sealer

Band sealers use heat to create airtight seals in bags and pouches. They use rotating belts to move the bag through heated elements to seal up the product firmly. After sealing, a cooling mechanism solidifies the seal.

Band heat sealers are fast, consistent, and cost-effective. Not only that, but using one can help you cut down on production times and reduce waste.

These machines can be used in multiple industries, including food, medicine, chemicals, agriculture, etc. If you’re considering using Accutek’s horizontal band sealer for your product(s), talk with us so we can make sure that your products are compatible with our horizontal band sealer.

Key Features:

• Electronic temperature control
• Seal plastic bags of multiple materials
• Can be used with packing lines
• Solid ink printing

Recommended products for this machine:

• Bags of various sizes
• Plastic film bags

Options:

• No-pattern indentation printing
• Mesh or stripe indentation printing
• Date or lot coding

Standard Specification:

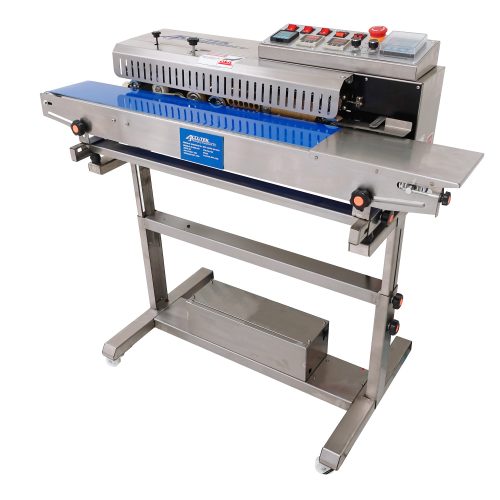

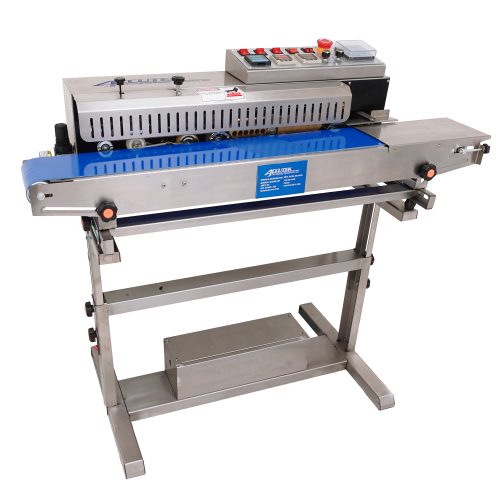

FRD1000VN (Floor type)

• Supply Voltage: 1P AC 220V/50-60Hz or 110V/60Hz
• Motor Power: 50W
• Heater power: 300W*2
• Sealing Speed: 0-13m/min (adjustable)
• Temp Range: 0-300 adjustable
• Film thickness: ≦0.08mm
• Conveyor Loading: ≦3kg ( 6.6 lbs.)
• Dimensions:
  • 1012mm X 505mm X 918mm (adjustable)
  • 3.3ft X 1.6ft X 3 ft.
• Weight: 42kg (92.6 lbs)

FRD1000N (Horizontal)

• Supply Voltage: 1P AC 220V/50-60Hz or 110V/60Hz
• Motor Power: 50W
• Heater power: 300W*2
• Sealing Speed: 0-13m/min (adjustable)
• Temp Range: 0-300 adjustable
• Film thickness: ≦0.08mm
• Conveyor Loading: ≦3kg ( 6.6 lbs.)
• Dimensions:
  • 1012mm X 410mm X 350mm
  • 3.3ft X 1.3 ft X 1.1 ft
• Weight: 24.5 kg (54 lbs)
